Description

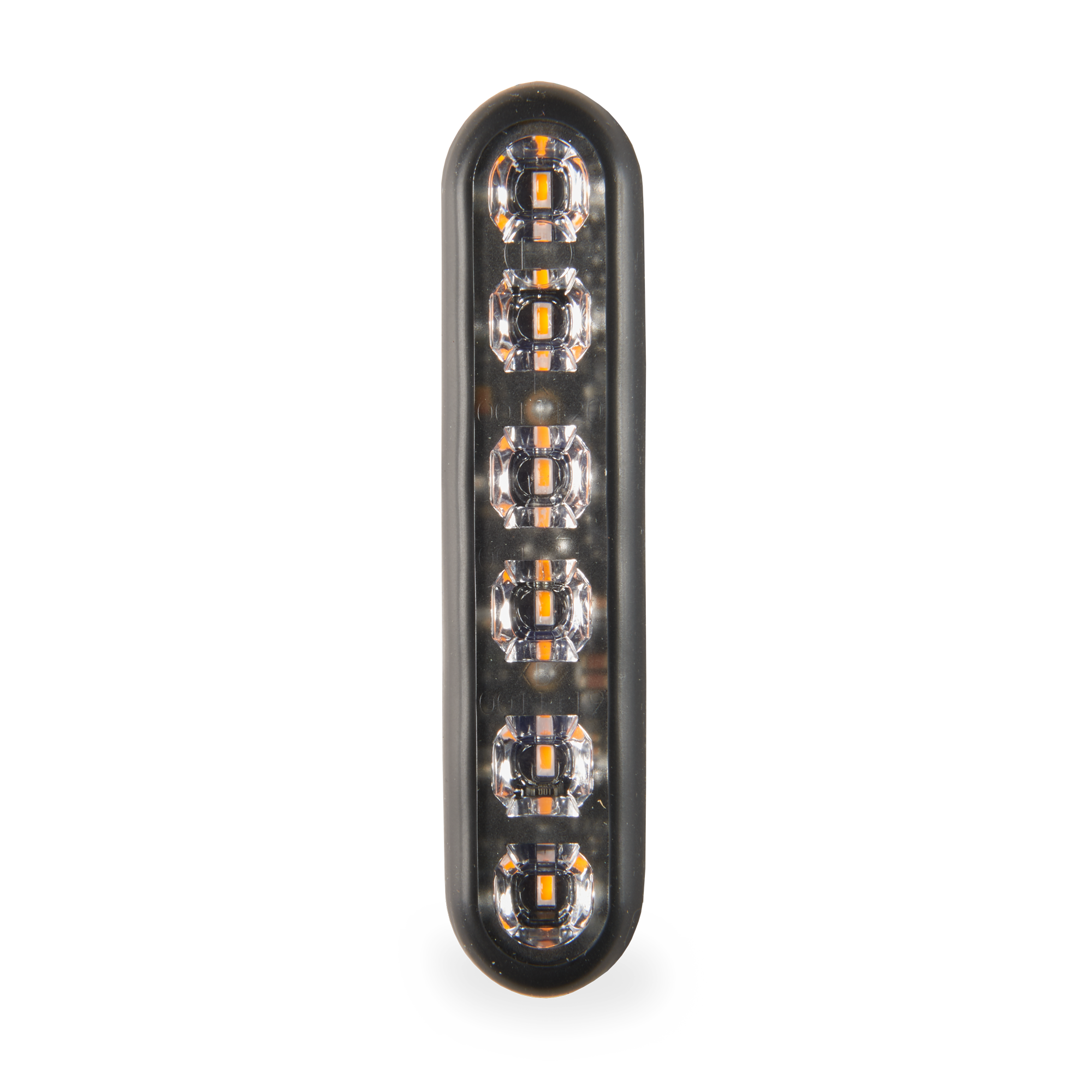

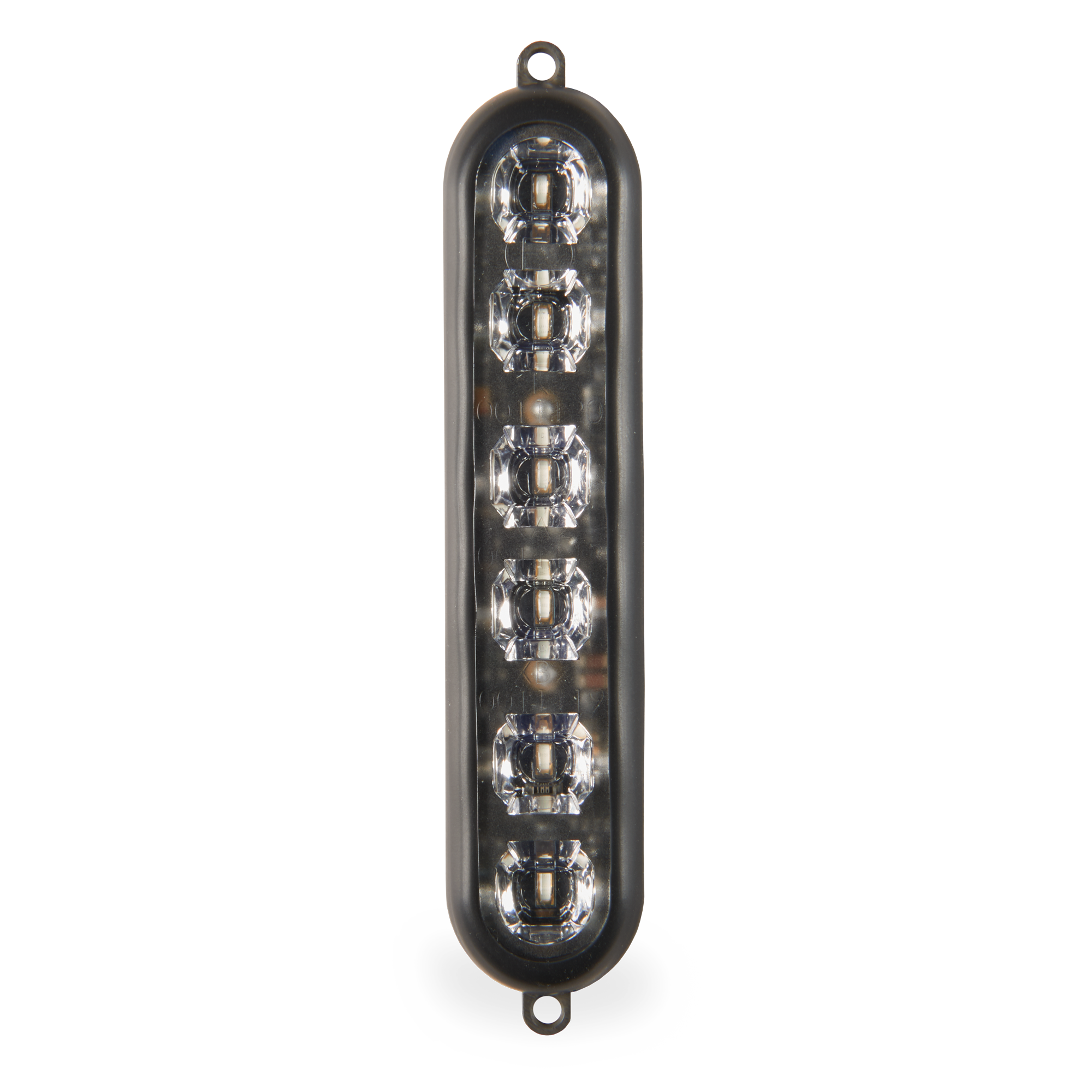

- First extremely compact, tri-color line of perimeter lighting on the market
- Design and mounting options allows for application nearly anywhere on a vehicle
- Patented, one-piece silicone lens and optic design delivers advantages over conventional polycarbonate lenses
- A smaller footprint with maximized candela output
- Greater resistance to gravel pitting, scratching or cracking
- Improved sealing to prevent water from entering light
- Highly resistant to UV light and harsh chemicals—achieving greater clarity when exposed to sunlight
- Clear lens w/Black housing (Contact FDC directly for change in housing color or lens)

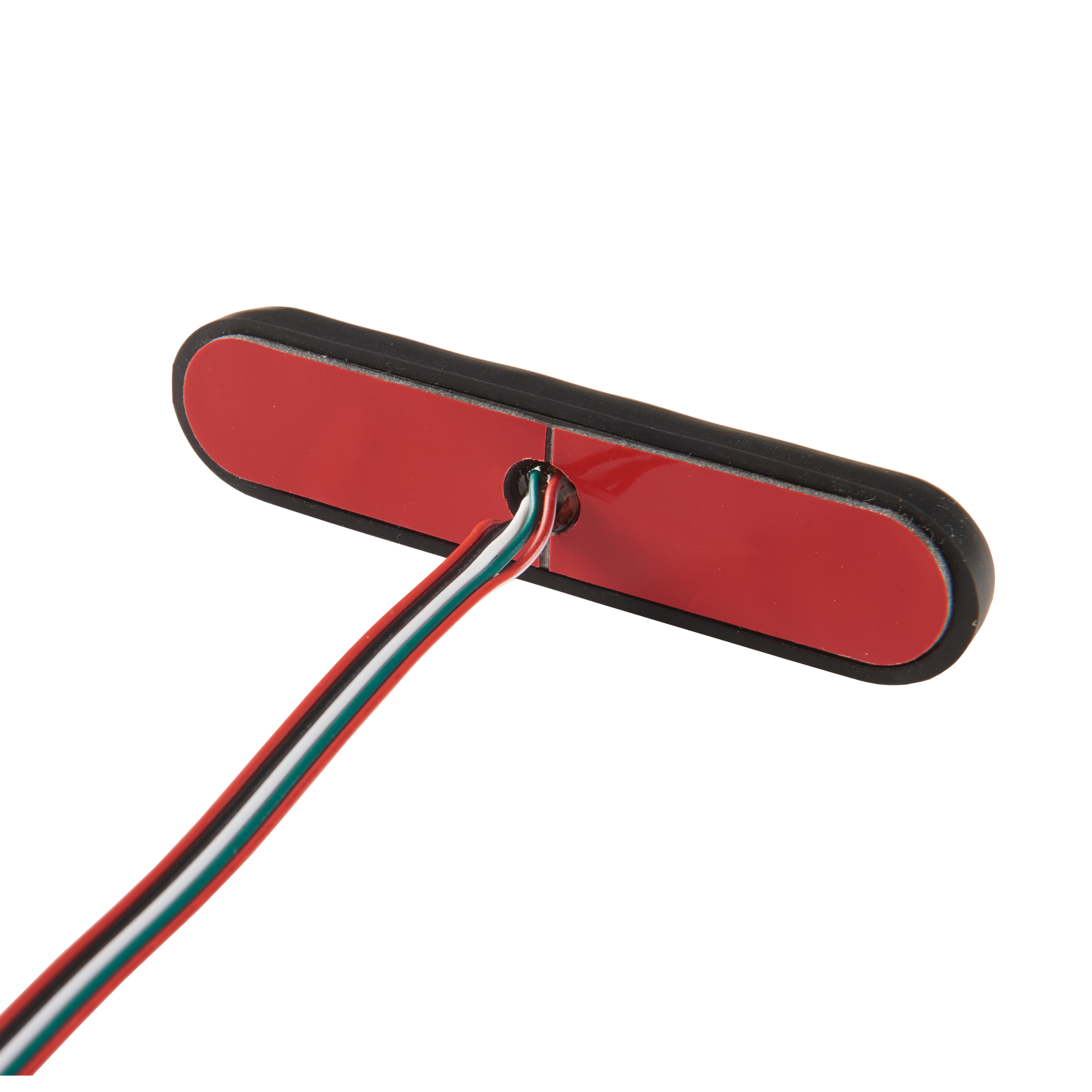

- 5 Wire Style (Contact FDC directly for 3 wire style)
Tech Specs
Input Voltage Range
9-32 Vdc
Lens Color Options
Clear
Flash Patterns
15
Light Sync
Up to 24 lightheads (Sync 2)
Dimensions
4.52″L x 0.92″H x 0.42″D (Screw Mount)
4.04″L x 0.92″H x 0.42″D (Threaded and Quick Mounts)
Mount Types
Quick, screw, stud
Certifications*
SAE J595, SAE J845, CA Title 13, ECE R65, ECE R10, NFPA 1900, KKK 1822-F
*Valid when using compliant patterns, color configurations and active modules
